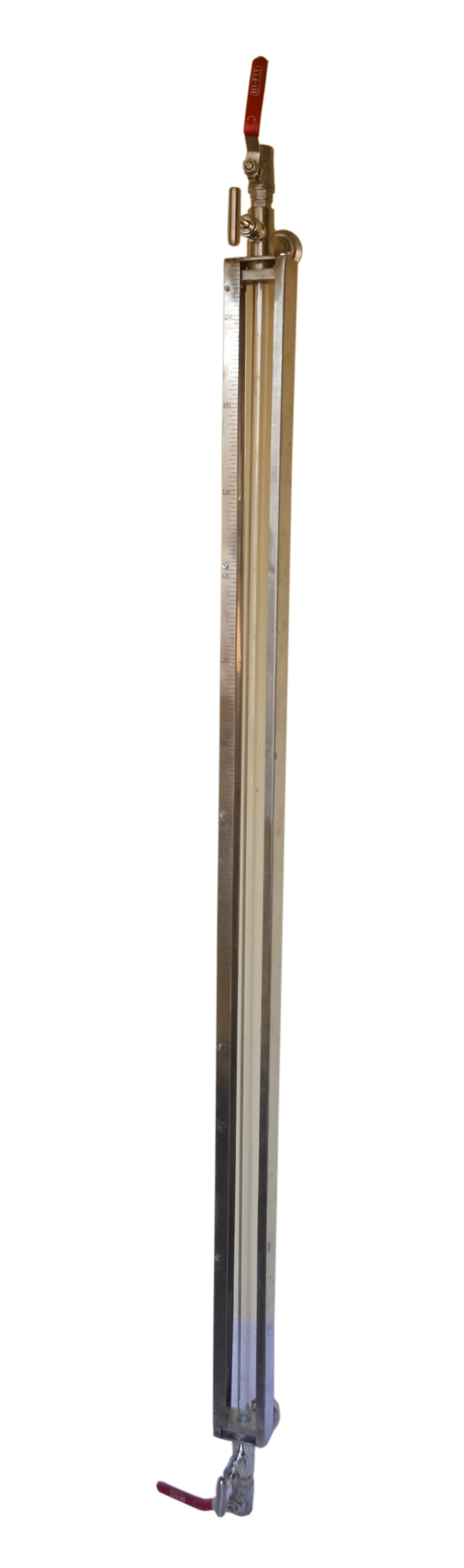

Tubular Level Indicator
Tubular Level Gauges are used to visualize the level in low or medium pressure application. Tubular Level Gauges are mounted on the side of the tank / vessel. Gauge is fitted between two end fittings through gland packing. The gauge is mounted parallel to tank so as form a close loop causing Protected with 'C' channel. End fiiting gas built-in isolating valve, drain valve & vent plug.
Standard Specifications
| Gauge |
HW Borosilicate Glass 16 / 19mm OD (25mm for viscous Liquids) |
| End Fitting MOC |
CS / SS 304 / SS 316 / PP /PTFE |
| End Block Type |
W/O Valve / Offset NV with or W/O Auto Ball Check |
| Guards |
CS / SS304 / FPR C- Channels |
| Gland MOC |
CI / SS316 / PP |
| Packing |
PTFE |
| Process Connection |
3/4" / 1" Flanged (Table D / ANSI 150#) or BSP Screwed |
| Vent / Drain |
Plug / Ball valve |
| Scale |
Aluminium Engraved |
| CC Dist |
1500mm in Single Length, Large CCD's Thru Coupler |
| Visibility |
CC Dist - 150mm |
| Maximum Temp |
200 Deg C (Metallic) / PP / 70 Deg C (PP) |
| Test Pressure |
10 Kg/cm2 (Metallice) / 2 Kg/cm2 |
