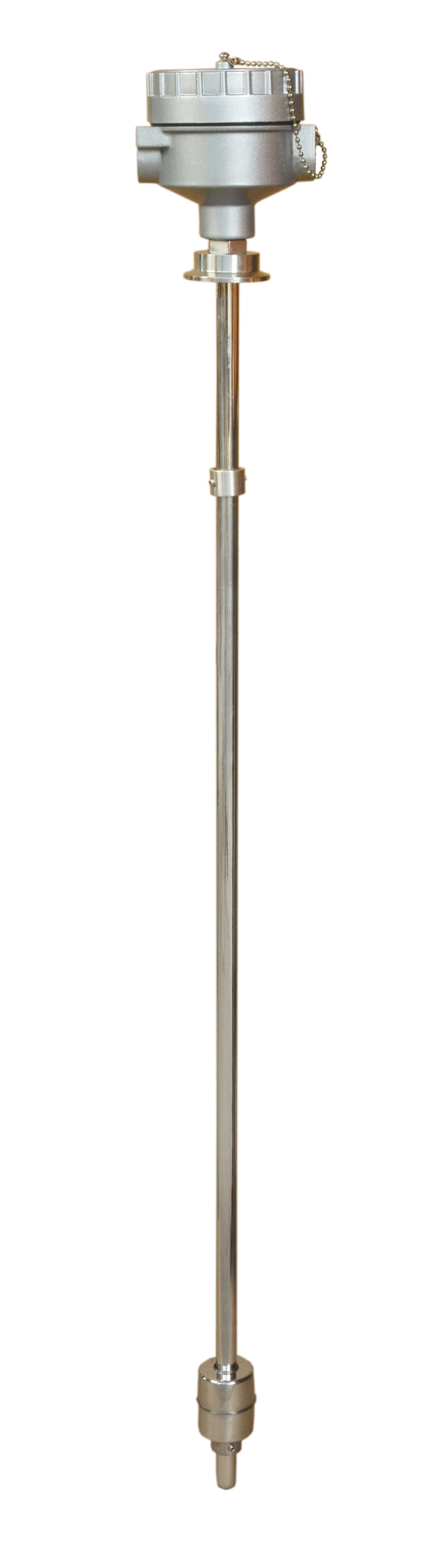

Float Operated Level Transmitter
Float Level Tranmitters are ideal for continuous level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The output is not affected by liquid type, Temperature, Pressure and other physical parameters. The Transmitter is factory calibrated and is ready to use.
Technical Specification :-
Overall Length:- 300mm to 5000mm
Measuring Error:- ±0.25 % or Span
Output Temperature Co-efficient:- ±0.007% / Deg C
Resolution:- 5mm / 10mm
Ambient Temperature:- -40 Deg C to 60 Deg C
Liquid Temp.Range:- 40 Deg C to 120 Deg C
Liquid Min. Density:- 0.8 gm/cc
Max. Pressure:- 10 Kg/cm2
Protection Category:- Weather proof IP66 to IS: 2147 (or) Flame Proof Gr.IIA & IIB to IS:2148
Terminals:- Max. 1.5mm2 Flexible
Cable Entry:- PG11 for Weather Proof 3/4" Et for Flame proof (Glands not supplied)
Output:- 2 wire, 4-20 mA 3 Wire, 0-10 V DC RS 485
Process Connection:- Threaded Flanged Tri Clamp other
Excitation Voltage:- 10-30 V DC
Loop Resistance:- Max 1200 Ω
