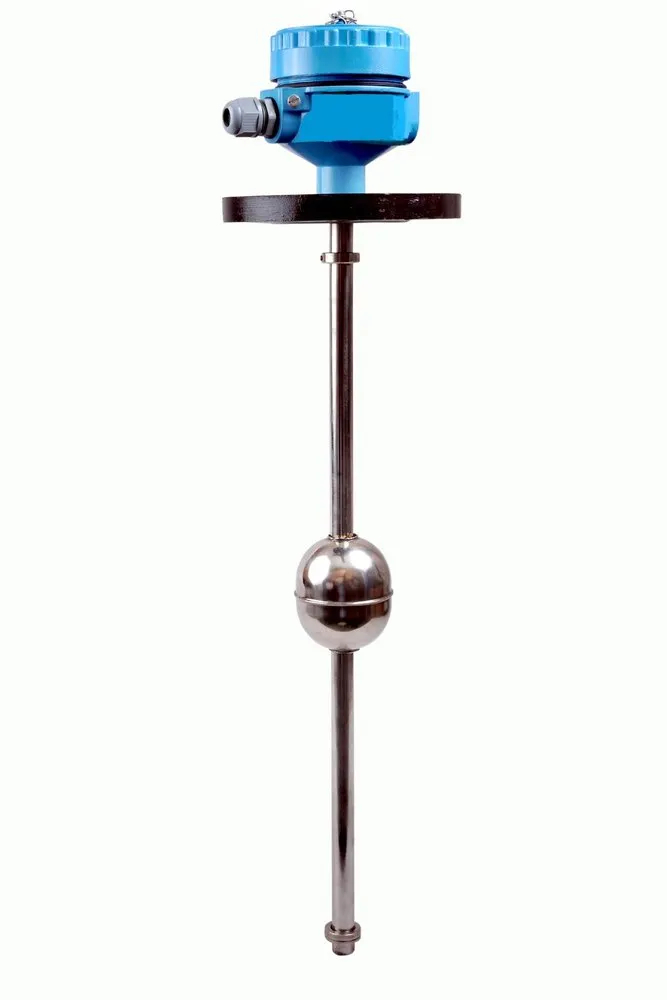

Top Mounted Level Switch
Manufacture Magnetically Float Operated Top Mounted Level Switch which is intended for controlling one or multi levels by using Reed switch. The Unit Consists of Vertical Guide pipe (Stem), Reed Switches are located, Magnetic Float sliding over the stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on service condition. Maximum 4 set points can be given in a single level switch & maximum stem length will be 3 Meter.
Technical Specification :-
Float :- SS 316 or Teflon Coated or PP
Process Connection:- Screwed or Flanged
Switch Rating:- Hermetically sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. 0.5 Amp @240 V AC
Switch Housing:- Weather Proof IP 65 or Flame Proof Gr.A, II B
Operating Pressure:- 10kg/cm2
Operating Temp:- Max 100 Deg C
Cable entry:- 1/2" NPT (f) or 3/4" ET (f)
No of Switches:- As per Customer Requirement
Stem Length:- Up to 3 Meter
