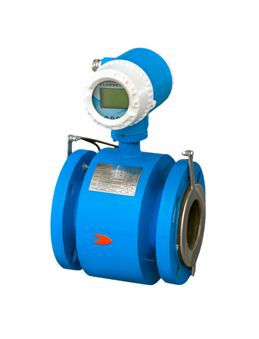

Electromagnetic Flowmeter- Instrument designed for measuring and indicating flow and total volume of conductive liquids. As there are no moving parts in the flow profile the device can be used to measure extremely dirty liquid containing Solids. The Flowmeter is for use with conductive liquids only. The flowmeter has been designed for use in all process industries including chemical, water and wastewater .

Technical Specification :-

  Working Temperature:- Intergral PTFE-120 Deg C /Remote PTFE -180 Deg C / Other-70 Deg C

  Electrode Material:- SS316

  Sensor Lining:- Std.Rubber

  Display Version:- Integral/Remote

  Sensor Housing Material:- std CS

  End Connection:- Flange/Water/Tri-Camp/SMS

  Flange- Standard

  Measuring range:- 0.2 to 12 m/sec. Bidirectional

  Repeatability:- +0.2% of Scan

  Display:- 2 Line LCD

  Display units:- All standard engineering units in m3, Liter, gallon, f3, imperial gallon.

  Output:- Std. 4-20 mA + / Pulse +

  Power Supply:- 18-60 V DC or 80-300 VAC/DC

  Protection class or sensor:- Std. IP65 Option IP 68 or flow tube in remote type.

  Cable Length for remote:- Std.10 m

  Installation:-Inline Flanged Type
